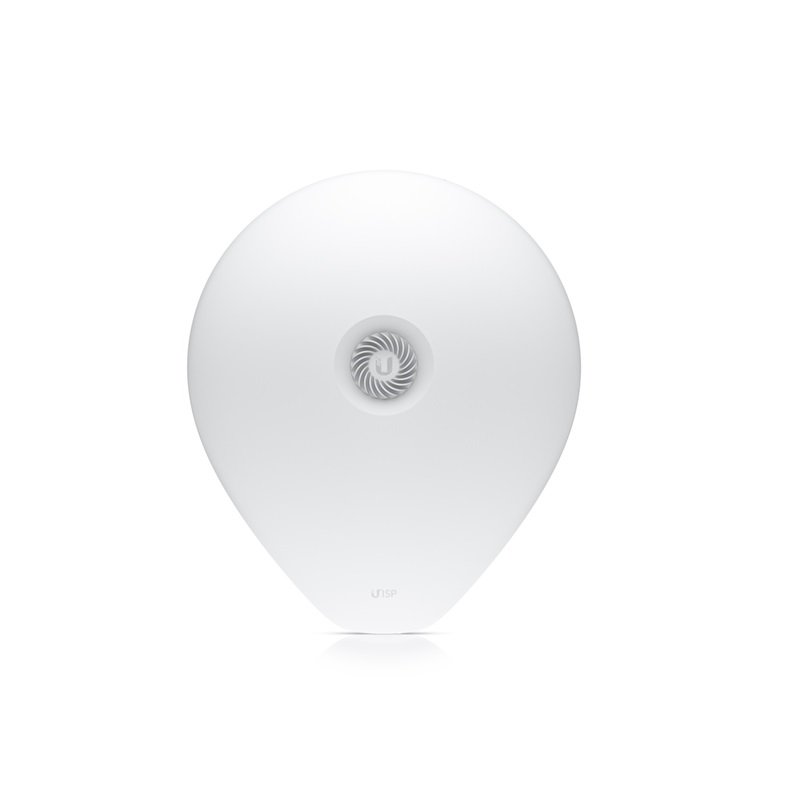

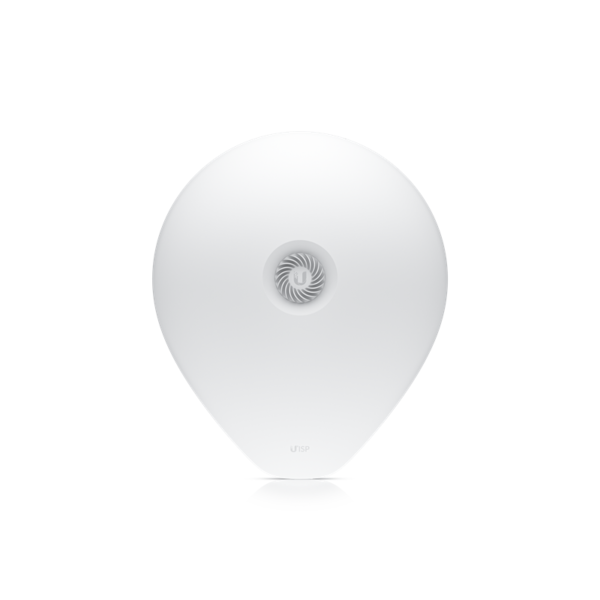

Ubiquiti airFiber 60 XG AF60-XG Price in Riyadh, Saudi Arabia
The Ubiquiti AirFiber 60 XR (AF60-XR) is a high-performance, 60 GHz bridge designed to enable multi-gigabit connectivity over long distances, specifically crafted for creating long-distance links with a remarkable throughput of 5.4 Gbps (2.7 Gbps duplex). This device is engineered to deliver reliable, low-interference, and low-latency wireless connectivity, making it an ideal solution for a wide range of applications, including backhaul for wireless internet service providers, enterprise networks, CCTV networks, and other scenarios requiring high-speed data transmission.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
10
People watching this product now!
Payment Methods:
Description
AF60-XG
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.68 x 26.14 x 15.06″) |
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
| Enclosure material | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |
| Mounting | Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″) |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. power consumption | 31.2W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A Gigabit PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| Operating mode | PtP only |
| Services | UISP, ping watchdog, NTP client, system log |
| Utilities | Antenna alignment tool, discovery utility, ping, speed test |
| Management application | UISP web: Version 1.4.3 and later UISP iOS™ and Android™: Version 2.19 and later |
| System | |
| Max. throughput | 5 GHz: 866.6 Mbps 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled) |
| Max. range | 4 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–66 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160 MHz/4320 MHz (With channel bonding enabled) |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *Depends on the channel bandwidth. |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| Back-Up RF | |
| Operating frequency* US/CA |
U-NII-1 5150 – 5250 MHz U-NII-3 5725 – 5850 MHz |
| Worldwide | 5150–5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20/40/80 MHz |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP™ console Blue: connected to UISP console |
| Ethernet | Flashing blue: ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
| 5G | Blue: active connection |
