Ubiquiti airFiber 60 Xtreme-Range AF60-XR Price in Riyadh, Saudi Arabia

SKU: AF60-XR

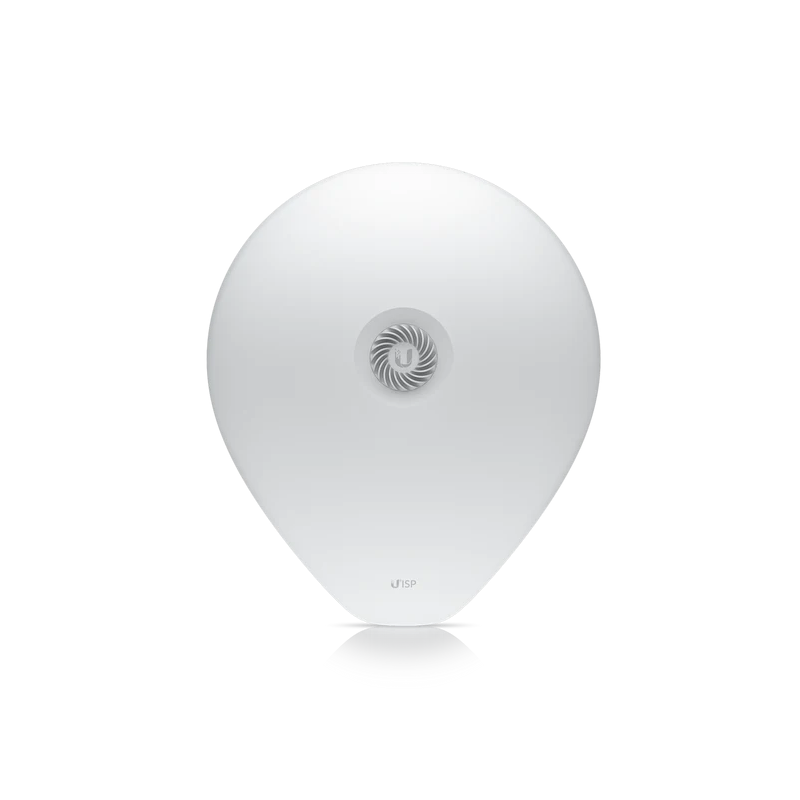

The Ubiquiti AirFiber 60 XR (AF60-XR) is a high-performance, 60 GHz bridge designed to enable multi-gigabit connectivity over long distances, specifically crafted for creating long-distance links with a remarkable throughput of 5.4 Gbps (2.7 Gbps duplex). This device is engineered to deliver reliable, low-interference, and low-latency wireless connectivity, making it an ideal solution for a wide range of applications, including backhaul for wireless internet service providers, enterprise networks, CCTV networks, and other scenarios requiring high-speed data transmission.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Login to see prices

Compare

Add to wishlist

18 People watching this product now!

Pick up from the itshopsa.com

To pick up today

Free

Payment Methods:

Description

AF60-XR

Mechanical
Dimensions	779 x 664 x 383 mm (30.7 x 26.1 x 15.1″)
Weight	Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb)
Enclosure material	UV stabilized polycarbonate, steel
Mount material	Galvanized steel
Mounting	Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″) on pipe outer diameter
Wind loading	422 N at 200 km/h (94.86 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory	DDR3L1 GB
Networking interface	(1) GbE RJ45 port (1) 1/10G SFP+port
Max. power consumption	24W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A gigabit PoE adapter (Included)
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
RF connections	Internal
Button	Factory reset
Ambient operating temperature	-40 to 55° C (-40 to 131° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
Operating mode	PtP only
Ubiquiti specific features	Integrated 60 GHz radio, discovery protocol, Wave technology
Services	UISP, ping watchdog, NTP client, device discovery
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge mode
Management application	UISP web: Version 1.4.3 and later UISP iOS™: Version 2.20 and later UISP Android™: Version 2.21.5 and later
System
Max. throughput	2.7 Gbps
Max. range	15+ km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57–71 Ghz * Depends on regulatory region.
Channel bandwidth	2160, 1080 MHz
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region.
Management radio	2400–2483.5 MHz
Modulation	16QAM, BPSK, QPSK
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4°
Electrical downtilt	0°
Back-Up RF
Operating frequency* US/CAWorldwide	U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz5150 – 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
Antenna gain	26 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 3 dB 5° Elevation: 3 dB 5°
Cross-pol isolation	14 dB
Electrical downtilt	0°
LEDs
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application
Ethernet	Flashing blue: Ethernet activity
GPS	Blue: receiving at least (4) GPS satellite signals
Link	Blue: 5GHz link Blue: 60GHz link
