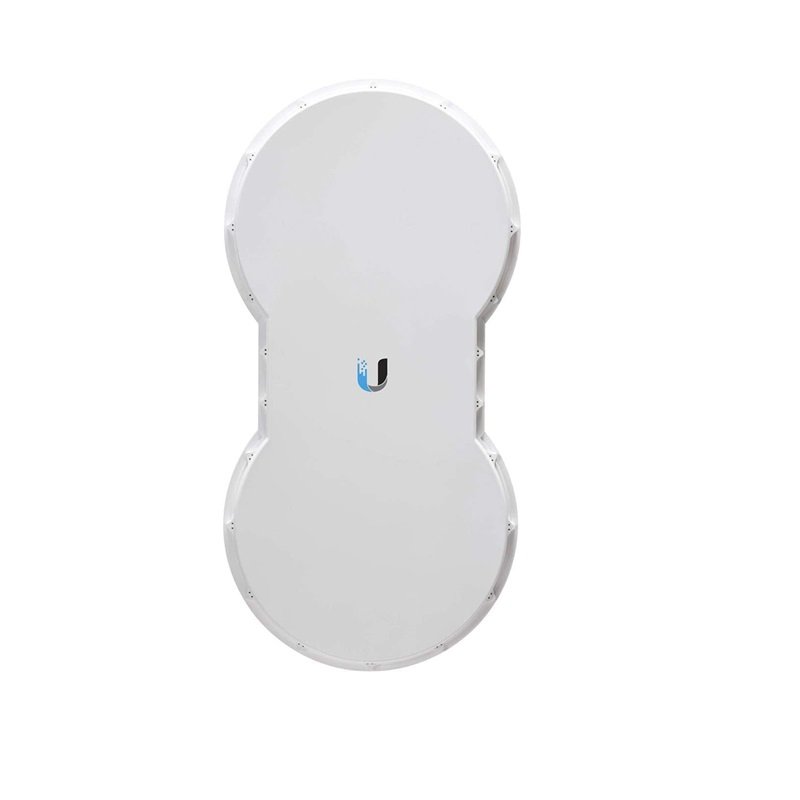

Ubiquiti airFiber 5 High-Band AF-5U Price in Riyadh, Saudi Arabia

SKU: AF-5U

Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Login to see prices

Compare

Add to wishlist

12 People watching this product now!

Pick up from the itshopsa.com

To pick up today

Free

Payment Methods:

Description

AF-5U

Mechanical
Dimensions	938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1″)
Weight	16 kg (35.3 lb)
Mounting	Pole mount kit (Included)
Wind loading	863 N @ 200 km/h (194 lbf @ 125 mph)
Wind survivability	200 km/h (125 mph)
Hardware
Networking interface	(1) GbE RJ45 port (1) 10/100 MbE RJ45 port
Auxiliary port	(1) RJ-12, alignment tone port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range	42–58V DC
Max. power consumption	40W
Ambient operating temperature	-40 to 55°C (-40 to 131° F)
Certifications	CE, FCC, IC
System
Max. throughput	1.2+ Gbps
Max. range*	100+ km *Dependent on regulatory region.
Packets per second	1+ million
Encryption	128-Bit AES
Uplink/downlink ratio	Programmable in Half Duplex mode
Radio frame synchronization	GPS
RF
Operating frequency	5725 – 5850 MHz (FCC 15.247, IC RSS-210) 5725 – 5875 MHz (ETSI EN 302 502) 5725 – 6200 MHz (Other regions)
GPS	GPS clock synchronization
EIRP	~50 dBm *Dependent on regulatory region and frequency band.
Frequency accuracy	±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization
Channel bandwidth	10/20/30/40/50 MHz
Modulation	1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO ½ Rate QPSK xRT ¼ Rate QPSK xRT
Gain TX RX	23 dBi 23 dBi
Beamwidth	6°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity isolation	> 28 dB
LEDs
System	(12) Status LEDs: Data port pink/activity Data port speed Management port link/activity Management port speed GPS synchronization Master/slave Link status Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload Remote and local displays (Calibrated signal strength)
