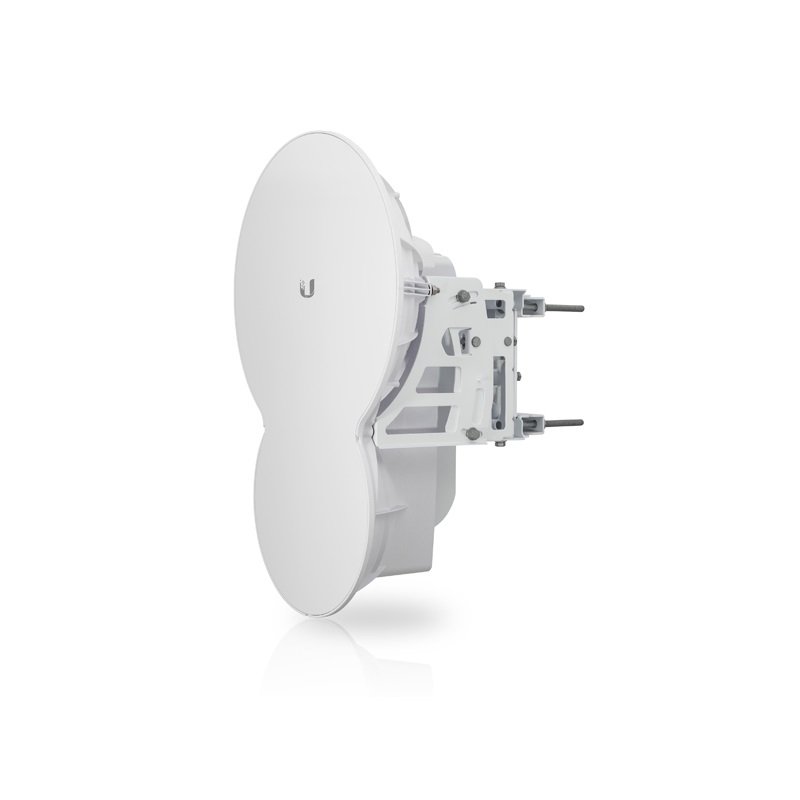

Ubiquiti airFiber 24 AF-24 Price in Riyadh, Saudi Arabia

SKU: AF-24

Delivers up to 1.5+ Gbps throughput at a range of up to 13+ km.

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

14 People watching this product now!

To pick up today

Free

Payment Methods:

AF-24

Mechanical
Dimensions	649 x 426 x 303 mm (25.6 x 16.8 x 11.9″)
Weight	10.5 kg (23.2 lb)
Mounting	Pole mount kit (Included)
Wind loading	480 N @ 200 km/h (108 lbf @ 125 mph)
Wind survivability	200 km/h (125 mph)
Hardware
Networking interface	(1) GbE RJ45 port (1) 10/100 MbE RJ45 port
Auxiliary port	(1) RJ-12, alignment tone port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply	50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range	42–58V DC
Max. power consumption	50W
Operating frequency	24.05 – 24.25 GHz
Ambient operating temperature	-40 to 55° C (-40 to 131° F)
Certifications	CE, FCC, IC
System
Max. throughput	1.5+ Gbps
Ma. range	13+ km
Packets per second	1+ million
Encryption	128-bit AES
Uplink/Downlink ratio	Programmable in Half Duplex mode
RF
GPS	GPS clock synchronization
EIRP	~33 dBm (FCC/IC) ~20 dBm (CE) ~40 dBm (Other Regions)
Frequency accuracy	±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization
Channel bandwidth	100 MHz
Operating frequency	24.05 – 24.25 GHz
Operating channels	24.1 GHz, 24.2 GHz
Modulation	64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO ¼x QPSK SISO
Gain TX RX	33 dBi 38 dBi
Beamwidth	< 3.5°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity Iiolation	> 28 dB
LEDs
System	(8) Status LEDs: Data port speed Data port link/activity Configuration port speed Configuration port link/activity GPS synchronization Modulation mode Master/slave RF status (1) Two-digit LED display calibrated in dBm
