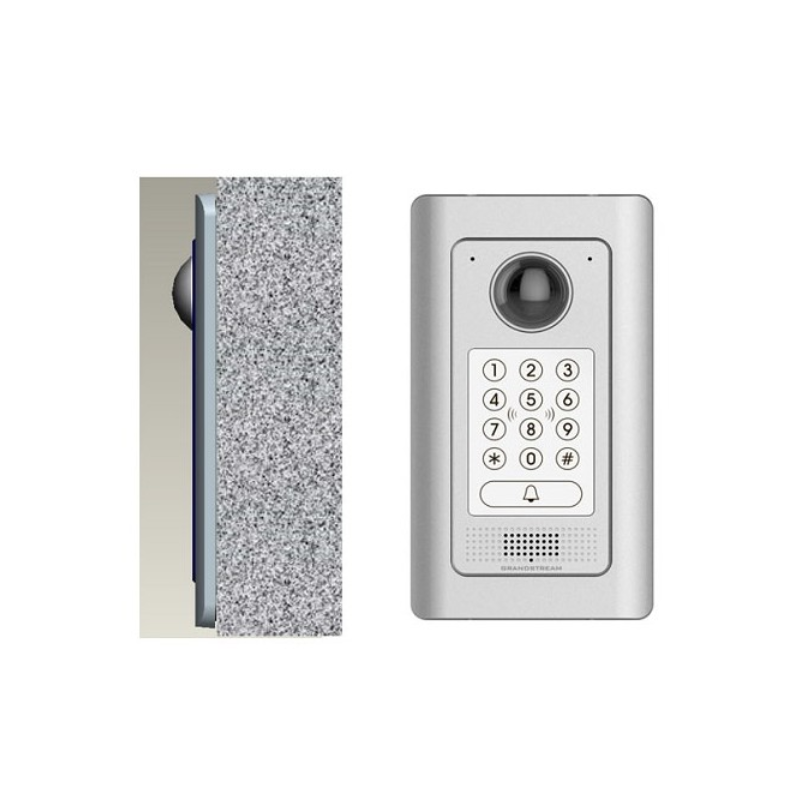

The In-Wall Mounting Kit is available for use with the GDS3710 IP Video Door Phone or GDS3705 IP Door Phone. This mounting kit allows the GDS3705/GDS3710 to be mounted flushed within a wall rather on the surface of the wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing the GDS3705/GDS3710 or the In-Wall Mounting kit, please follow local building and electrical code. The device is suggested to be installed with the bottom of the device 50-55 inches above the ground.

Required In-Wall Space: 99.8mm (3,93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)

What’s in the box?

• 1 x GDS-INWALL
• 1 x Installation Bracket
• 1 plastic box
• 1 x Drilling Template
• 1 x metal frame
• 1 x 6 piece anchor and screw set
• 12 x screws (2 different lengths)
• 12 x nuts (two different styles)
• 6 x anti-tamper screws
• 1 x anti-tamper hex key
• Quick Reference Guide

Please note that the GDS3705/GDS3710 IP Door Phone is not included with the mounting kit
