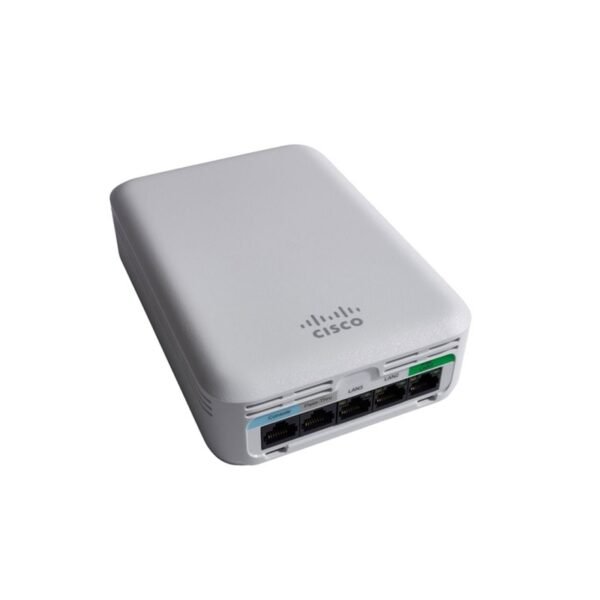

The Cisco? Aironet? 1815w Access Point offers a compact, wall plate Cmountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.?Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
To pick up today
Free
Payment Methods:
Cisco Aironet 1815w Access Point Specification |
||||||||
Authentication and security | ● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
● 802.1X, RADIUS authentication, authorization and accounting (AAA) ● 802.11r ● 802.11i |
|||||||
Software | ● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later
● Cisco Mobility Express |
|||||||
Supported WLAN COntrollers | ● Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 series Wireless Controllers,
● Cisco Mobility Express |
|||||||
Maximum clients | ● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point | |||||||
802.11ac | ● 2×2 single-user/multiuser MIMO with two spatial streams
● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support |
|||||||
Ethernet ports | ● Authentication with 802.1X or MAC filtered
● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller |
|||||||
Bluetooth (future Availability) | ● Integrated Bluetooth 4.1 (including BLE) radio
● Maximum transmit power: 4 dBm ● Antenna gain: 2 dBi |
Integrated antennas | ● 2.4 GHz, gain 2 dBi
● 5 GHz, gain 3 dBi |
|||||||
Interfaces | ● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
● Management console port (4-pin connector) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: ◦ PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af ● One passive pass-through port RJ-45 (back to bottom) |
|||||||
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors | |||||||
Dimensions (W x L x H) |
● Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm) | |||||||
Weight | ● Access point without mounting bracket or any other accessories: 10 oz (280 g) | |||||||
Environmental | ● Operating
◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 9843 ft (3,000 m) @ 40°C ● Non-operating (storage and transportation) ◦ Temperature: -22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (non-condensing) ◦ Max. altitude: 15,000 ft (4,500 m) @ 25°C |
|||||||
System | ● 1 GB DRAM
● 256 MB flash ● 710 MHz quad-core |
|||||||
Powering options | ● 802.3af/at Ethernet switch
● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=) |
|||||||
Power draw | ● 8.5W (maximum, without PoE out) | |||||||
Physical security | ● Torx security screw, included with the access point
● Kensington lock slot to lock device to mounting bracket. |
|||||||
Mounting | ● Included with the access point: mounting bracket AIR-AP-BRACKET-W3 | |||||||
Accessories | ● Mounting bracket: AIR-AP-BRACKET-W3= (available as spare)
● Spacer kit: AIR-AP1815W-KIT= (sold separately), includes spacer and RJ-45 jumper cable ● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 20 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports |
|||||||
Warranty | Limited Lifetime Hardware Warranty | |||||||
Compliance | ● Safety:
◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-247 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 50385 ● IEEE standards: ◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ◦ IEEE 802.11ac ● Security: ◦ 802.11i, WPA2, WPA ◦ 802.1X ◦ AES ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 |
