Belden-5202FE Price in Riyadh, Saudi Arabia

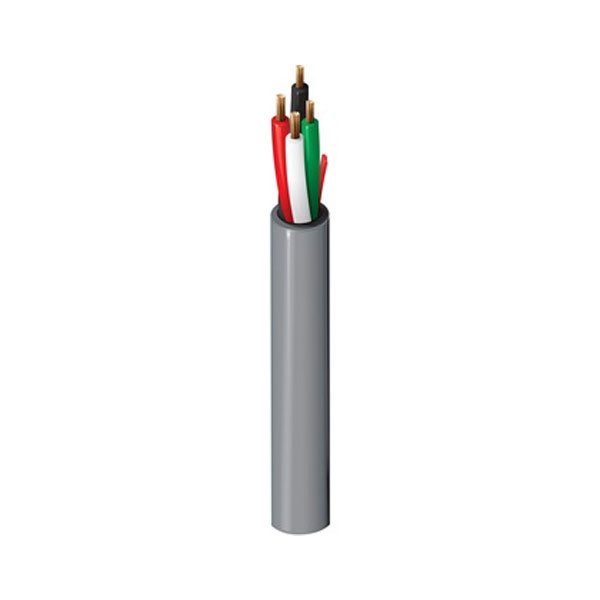

Belden 5202FE is a 4-conductor, 16 AWG, shielded, riser-rated (CMR) cable designed for security systems, intercom/public address (PA) systems, audio/speaker connections, and power-limited control applications. Its construction includes stranded bare copper conductors, polyolefin insulation, an overall Beldfoil® shield with a drain wire, and a PVC jacket with a ripcord, making it suitable for indoor installations in noisy environments
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
17
People watching this product now!
Payment Methods:
Description
| Property | Details |
|---|---|
| Cable Type | Multi-Conductor, Unshielded |
| Conductor Material | Stranded Bare Copper (7×26) |
| Conductor Size | 18 AWG |
| Number of Conductors | 3 |
| Insulation Material | Polypropylene (PP) |
| Insulation Thickness | 0.008 in (0.20 mm) |
| Color Code | Black, Red, White |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Jacket Thickness | 0.017 in (0.43 mm) |
| Outer Diameter | 0.167 in (4.24 mm) |
| Jacket Color | Gray |
| Voltage Rating | 300V |
| Temperature Rating | -20°C to +75°C |
| Flame Rating | UL 1666 Riser, FT4, IEC 60332-1-2 |
| Conductor DCR | 6.5 Ohm/1000 ft |
| Capacitance | 20.25 pF/ft (66.44 pF/m) between conductors |
| Max. Current | 5 Amps per conductor @ 25°C |
| Bend Radius | 1.7 in (43 mm) |
| Max. Pull Tension | 67 lbs (30 kg) |
| Bulk Cable Weight | 22 lbs/1000 ft |
| Compliance Standards | NEC Article 800, CMR; CEC CMG; RoHS; CE; UKCA; China RoHS II |
| Applications | Security systems, intercom/PA, audio/speaker, power-limited controls |
